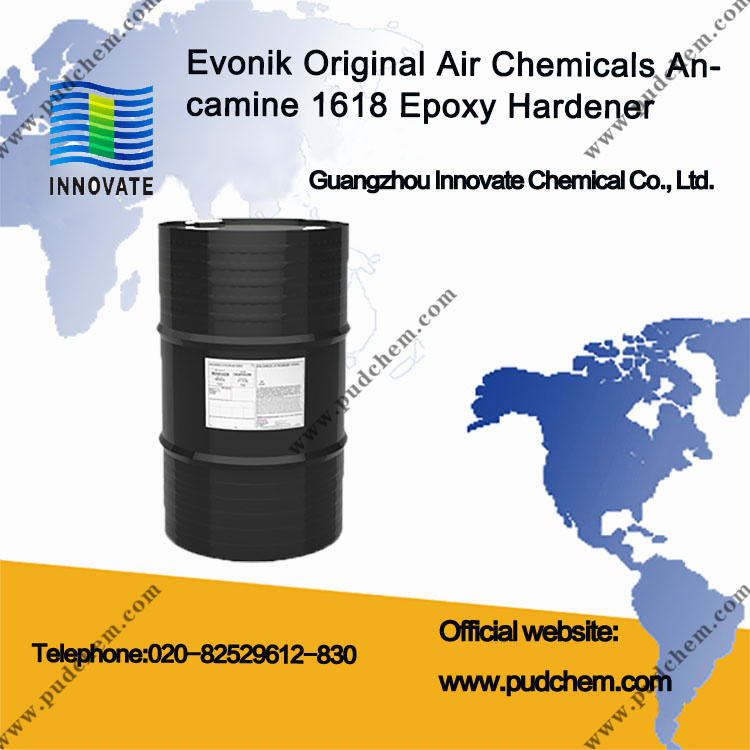

Evonik Original Air Chemicals Ancamine 1618 Epoxy Hardener

Product introduction
Ancamine 1618 is a light-colored, low-viscosity, modified cycloaliphatic amine curing agent for use with liquid epoxy resins primarily at room or low temperature. Ancamine 1618 hardener provides a high-gloss finish with good chemical resistance for floors, industrial protective coatings, tank liners, and leak-proof container liners. Ancamine 1618 hardener is light in color and has good color stability, making it ideal for formulating varnishes and light bright color coatings.

Typical properties

Exterior	clear amber liquid
Color [Gardner]	1
Viscosity @25℃[cP]	450
Amine value, [mg KOH/g]	272
Specific Gravity @25℃	1.03
Density@25℃ [lb/gal]	8.6
Flash point [closed cup] [℃]	96
Active hydrogen equivalent	113
100g resin recommended dosage [EEW=190]	60

Typical operating performance	A	B
usage [phr]	60	58
Mixed Viscosity@25℃[cP]	2400	1.370
Gel time [@25℃, 150g mix][min]	50	74
Film drying time
@ 25°C [hr]	7.0	7.3
@ 10°C [hr]	--	19
Exothermic peak [@25℃, 100g mix] [℃]	91	--
Appearance time of exothermic peak [min]	60	--

A* Ancamine 1618 curing agent is used with standard bisphenol A epoxy resin [DGEBA, EEW=190).
B* Ancamine 1618 curing agent is used with 90% Bisphenol A epoxy resin [DGEBA, EEW=190) and 10% reactive diluent Epodil 748. [C12-C14 alkyl glycidyl ether)

Typical performance	A	B
[Cure for 7 days at 25°C]
Glass transition temperature [℃]	50	44
Compressive yield strength [psi]	--	9500
Compressive modulus [1000psi]	--	312
Tensile Strength [psi]	7140	6100
Tensile Modulus [100psi]	322	204
Tensile elongation[%]	--	7.0
Flexural Strength [psi]	13380	10100
Flexural Modulus [1000psi]	344	378
Shore D hardness	81	82
Anti-wear weight loss [1000r, 10# wheel, gm]	--	0.056
Scratch resistance [kg]	--	1.05
Heat distortion temperature [℃]	46	--
Bond Strength [Mild and Mild Steel] [psi]	820	--

Performance advantage
Light color, excellent color stability
 Good chemical resistance
 High gloss
 Excellent oil resistance
 Low viscosity

application
 High solids coating
 Self-leveling and striped paint floor coatings
 Chemical resistance tank lining paint, mortar and grout
 Decorative tile grout

save time
24 months from the date of production in the original sealed package at room temperature. Keep away from high temperature and high humidity areas.

Precautions for use
Please refer to the Ancamine 1618 Curing Agent Material Safety Data Sheet.

Typical Cure Cycle
2-7 days at room temperature
